USB modules

-          General USB modules

-          Sealed USB modules

-          R0068 USB modules















CS50071

Product Features:

-          IP67 sealed

-          Nickel plated aluminium shell

-          Thread USB cable coupling

-          Shock, vibration and traction resistant

-          RS232 to USB conversion

-          Virtual COM port device driver

-          ESD surge protection

-          Panel mounting

-          USB bus powered, 17.9mA

-          Serial configuration,

      CS50071: programmable

      CS50071-96: 9600,8,n,1

      CS50071-19: 19200,8,n,1

      CS50071-11: 115200,8,n,1

Datasheet.

CS50072

Product Features:

-          IP67 sealed

-          Nickel plated aluminium shell

-          Thread USB cable coupling

-          Shock, vibration and traction resistant

-          RS232 to USB conversion

-          Virtual COM port device driver

-          ESD surge protection

-          Panel mounting

-          USB bus powered, 17.9mA

-          Serial configuration,

      CS50072: programmable

      CS50072-96: 9600,8,n,1

      CS50072-19: 19200,8,n,1

      CS50072-11: 115200,8,n,1

Datasheet.

CS5009P

Product Features:

-          IP67 sealed

-          Nickel plated zinc alloy shell

-          Shock and vibration resistant

-          RS232 to USB conversion

-          Virtual COM port device driver

-          ESD surge protection

-          Panel mounting

-          USB bus powered, 17.5mA

-          Serial configuration,

      CS5009P: programmable

      CS5009P-96: 9600,8,n,1

      CS5009P-19: 19200,8,n,1

      CS5009P-11: 115200,8,n,1

Datasheet.







CS50082

Product Features:

-          IP68 sealed

-          Plastic shell

-          Thread USB cable coupling

-          RS232 to USB conversion

-          Virtual COM port device driver

-          ESD surge protection

-          Panel mounting

-          USB bus powered, 17.5mA

-          Serial configuration,

CS50082: programmable

      CS50082-96: 9600,8,n,1

      CS50082-19: 19200,8,n,1

      CS50082-11: 115200,8,n,1

Datasheet.



CS50081

Product Features:

-          IP67 sealed

-          Plastic shell

-          Thread USB cable coupling

-          RS232 to USB conversion

-          Virtual COM port device driver

-          ESD surge protection

-          Panel mounting

-          USB bus powered, 17.5mA

-          Serial configuration,

CS50081: programmable

      CS50081-96: 9600,8,n,1

      CS50081-19: 19200,8,n,1

      CS50081-11: 115200,8,n,1

Datasheet.



CS50070

Product Features:

-          USB module for CS50071, CS50072

-          IP67 sealed when installed in its shell

-          RS232 to USB conversion

-          Virtual COM port device driver

-          ESD surge protection

-          For panel mounting shell

-          USB bus powered, 17.9mA

-          Serial configuration,

CS50070: programmable

      CS50070-96: 9600,8,n,1

      CS50070-19: 19200,8,n,1

      CS50070-11: 115200,8,n,1

Datasheet.





CS50071C

CS50071 cap

CS50072C

CS50072 cap

CS50081C

CS50081 cap

CS5009C

CS5009 cap

CS50082C

CS50082 cap

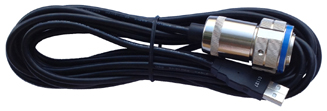

CS5007L5

USB A plug to IP67 sealed USB A plug, 5m, shielded. Datasheet.

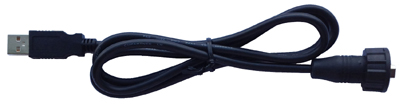

CS50081L1

USB A plug to IP67 sealed USB B plug, 1m, shielded.

Datasheet.

CS50082L2

USB A plug to IP68 sealed USB B plug, 2m, shielded.

Datasheet.
