Typical GPS Performance
-
Position
fix update rate: 1Hz, 5Hz, 10Hz.
-
Accuracy:
3m Horizontal (RMC), 2.5m with DGPS(WAAS, Egnos, MSAS), 0.1m/s Velocity.
-
Time
to First Fix: Cold start 35s, Hot start 1s.
-
Acceleration
range: 4g maximum
-
Velocity
range: 515m/s maximum
-
Altitude
range: 18000m maximum
-
Output
Protocol: NMEA-0183
-
NMEA
Output: GGA, RMC, GSV, GSA
Interfaces
-
One
USB 2.0 interface. Support two Microsoft Windows virtual COM ports.
-
Two
RS232 interfaces. One RS232 interface, for external sub-meter GPS, supports
auto-baud rate. Each RS232 interface is connected with a Microsoft Windows
virtual COM port.
Software
Microsoft Windows virtual COM

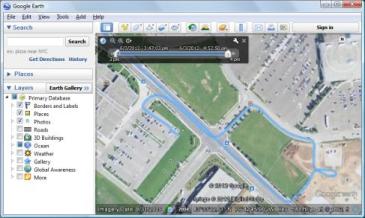

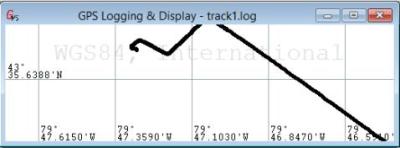

port device drivers, 32-bit and 64-bit. eeTerminal records GPS information
and supports Google Earth.
Power
USB bus power, 37.5mA typical,
43.5mA with DGPS active, 55mA maximum.
Mounting
External or internal with 4M4
screws.
|
